DISC PENDANT Range 100-230V

• Product Description

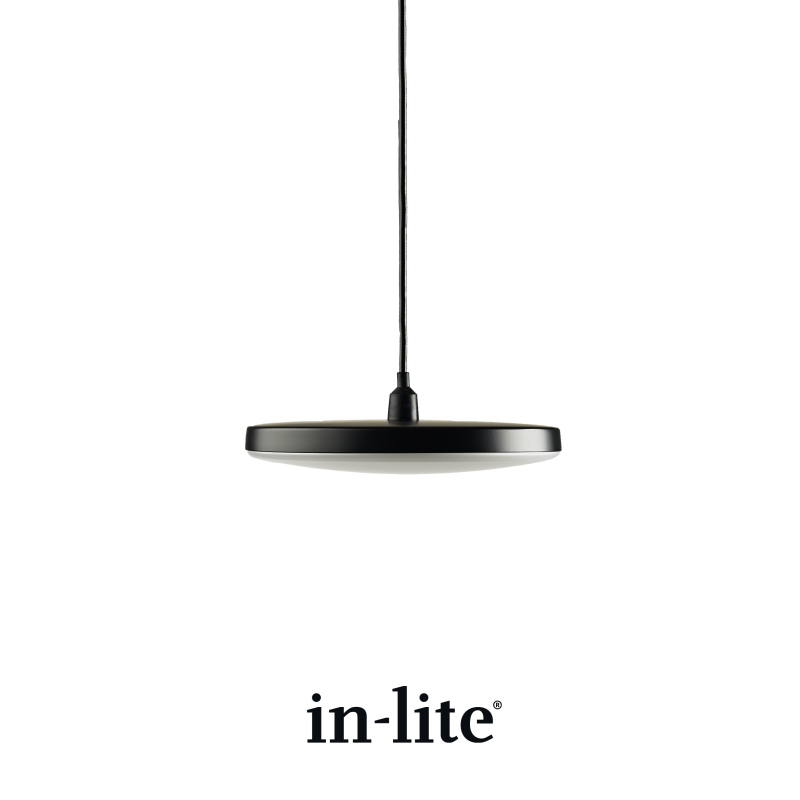

  The DISC PENDANT 100-230V is an attractive hanging light that can be installed alone or in groups using the DISC BASE or DISC BASE TRIPLE.

  • Dimmed by hand movements
  • Made of aluminum with high-quality FCBV coating in the color Black
  • Installed alone or in groups using the DISC BASE or DISC BASE TRIPLE



  NSTALLATION INSTRUCTIONS AND DOWNLOADS

  Install the DISC PENDANT 100-230V with the DISC BASE to an existing 230V power point in the ceiling.

  If multiple fixtures are to be installed using the DISC BASE TRIPLE, it is important to install the fixtures at different heights and with sufficient distance between them. Use the strain relief devices provided to ensure this.

  The DISC PENDANT 100-230V should preferably be hung in a windless spot.

  The DISC PENDANT 100-230V can be easily combined with other fixtures in the DISC concept, as well as the PUCK, HALO and other in-lite fixtures in Black or Dark Grey anodized aluminum.

  MORE INFORMATION

  Product Details

  Product Details

  Color

  Black

  General

  General

  Height mm	36
  Height inch	1.42
  Diameter mm	200
  Diameter Inch	7.87
  Housing	Aluminium FCBV
  Voltage	100-230 volt
  Power	4,5W
  Electric potential	11,8VA
  Light source	LED
  Burning time	25000
  Lighting direction	Downwards
  Lighting reach m	3
  Lighting reach ft	9.84
  Color temperature	2900
  CRI	98
  Net Luminous Flux	216lm
  Luminous Efficacy	45lm/W
  IP-class	55
  Energy label	A
  Implementation	Overhang, Pergola
  Features	Dimmable
  Installation instructions	Install the DISC PENDANT 100-230V with the DISC BASE to an existing 230V power point in the ceiling. If multiple fixtures are to be installed using the DISC BASE TRIPLE, it is important to install the fixtures at different heights and with sufficient distance between them. Use the strain relief devices provided to ensure this. The DISC PENDANT 100-230V should preferably be hung in a windless spot. The DISC PENDANT 100-230V can be easily combined with other fixtures in the DISC concept, as well as the PUCK, HALO and other in-lite fixtures in Black or Dark Grey anodized aluminum.
