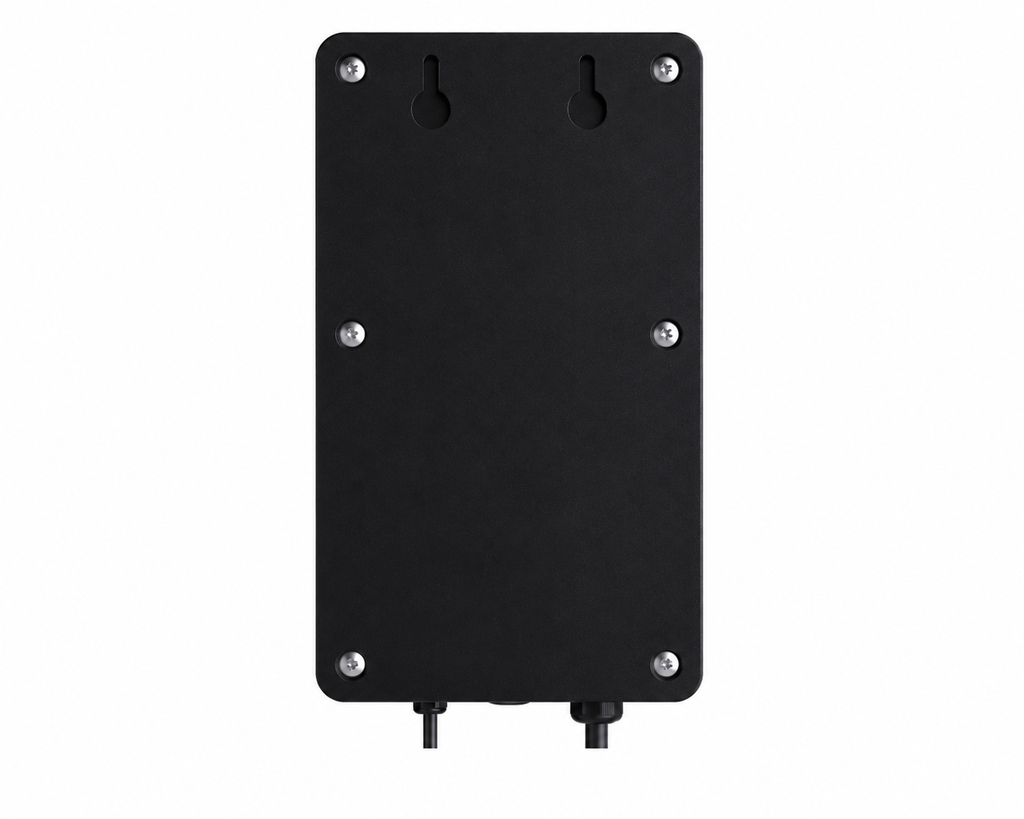

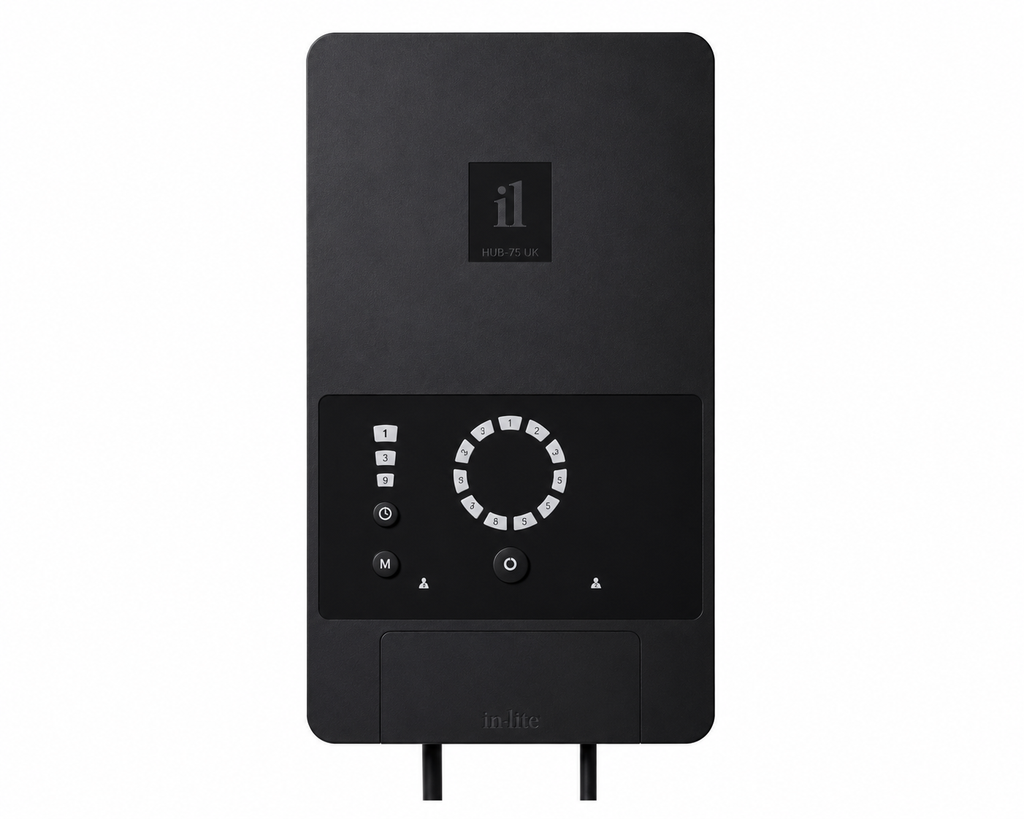

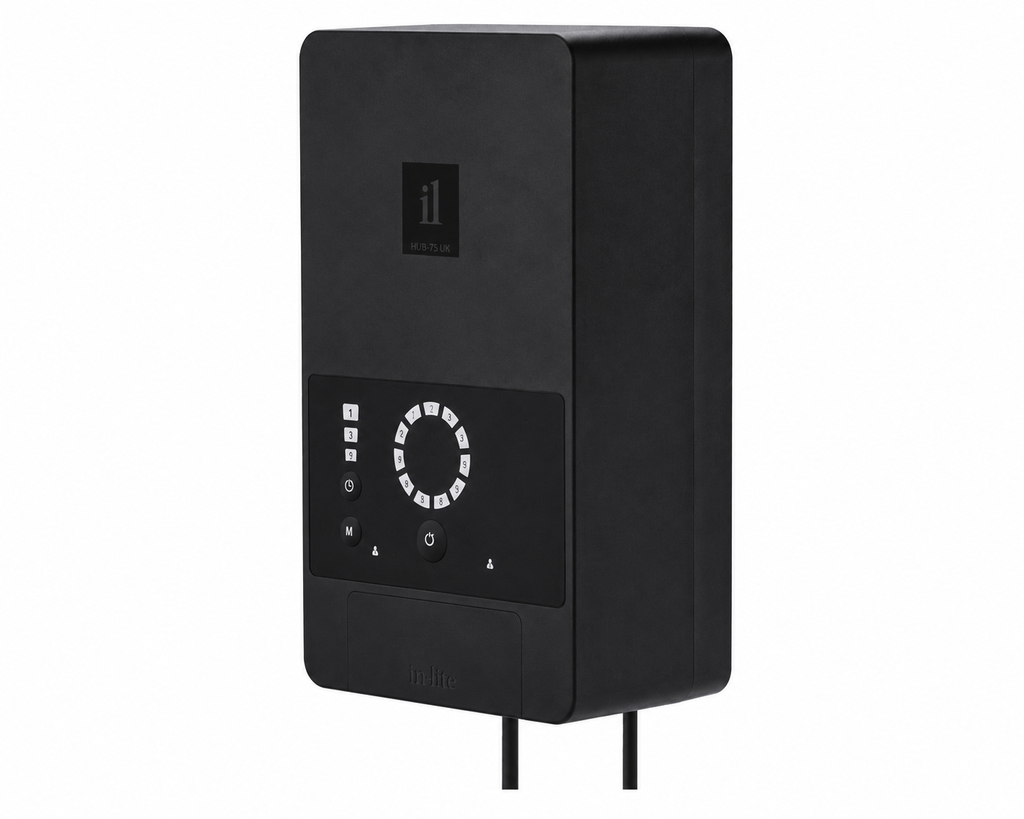

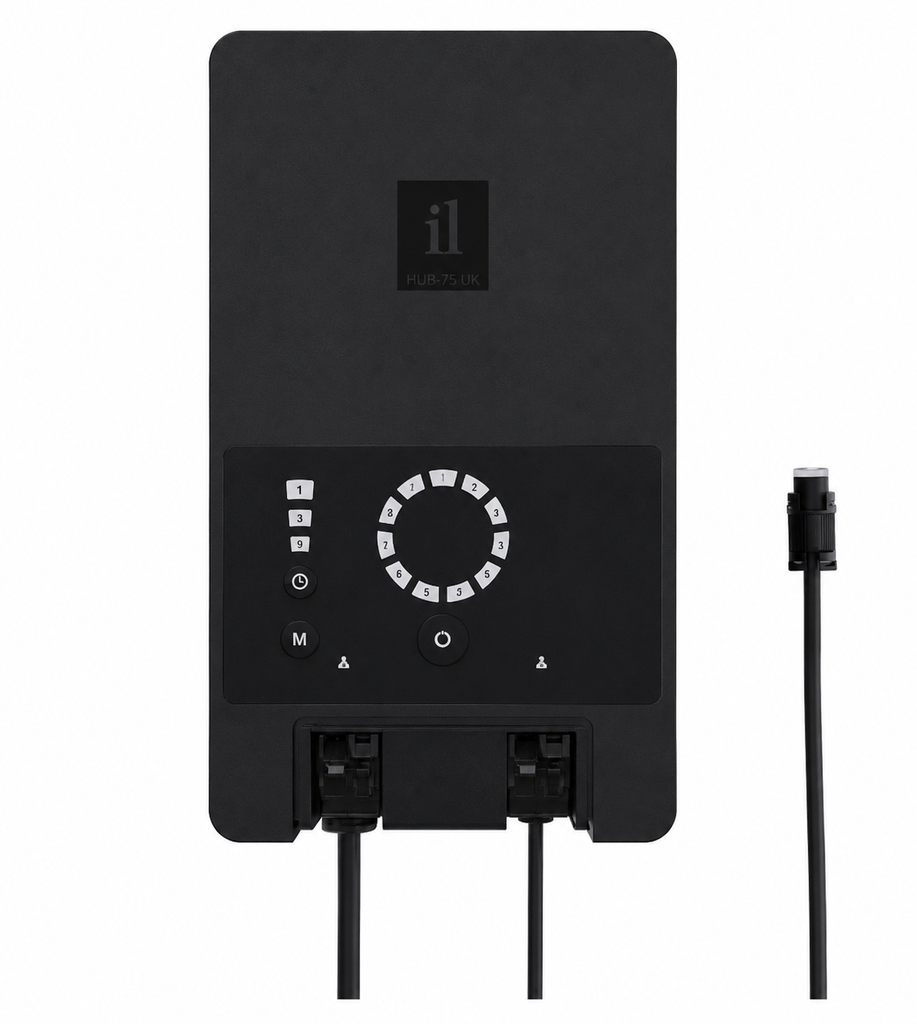

HUB-75 UK
-
Product Description
Smart, Reliable & Easy to Operate
The HUB Series transformer is a high-quality power solution designed for professional outdoor lighting installations. Featuring two jointly controllable lines, intuitive operation, and advanced protection functions, the HUB offers maximum flexibility and safety for any lighting setup.
Key Features
- Simple and user-friendly operation
- Two jointly controllable line outputs
- Manual ON/OFF switching
- Automatic switching via included light sensor and timer
- Integrated warning indicator for overload or installation faults
- Built with high-quality components for long-term reliability
- Compatible with the separately available MOVE motion detector, enabling automatic lighting activation for 1, 3, or 9 minutes upon motion detection, with the option to control one or both lighting lines.
The HUB PROTECTOR is available separately and helps extend the lifespan of the HUB-75. For optimal performance and durability, all HUB units should be installed in a covered location protected from direct rain and moisture exposure.
The optional MOVE motion detector can be added as an accessory for enhanced lighting control. When motion is detected, the lighting automatically turns on for 1, 3, or 9 minutes. The MOVE also allows independent control of one lighting line or simultaneous control of both lines.
Intelligent Lighting Control
The HUB transformer supports multiple control options, allowing you to create the ideal lighting schedule for your outdoor environment.
Included Functions
- Manual operation for direct control
- Automatic dusk activation using the supplied light sensor
- Timer-based switching for scheduled operation
Technical Specifications
Product Information
- Article Number: 10500805
- EAN: 8717051007590
- Article Group: Transformers
Electrical Specifications
- Power Rating: 75 W
- VA Value: 75 VA
- Input Voltage: 230 V
- Water/Dust Resistance: IP23
Dimensions
- Height: 75 mm/2.95 in
- Width: 125 mm/4.92 in
- Length: 215 mm/8.46in
-
